Modify This Plan: MODIFICATION REQUEST FORM
Design Details:
Plan #: Diamond Head
Style: Modern, Tudor, Rustic, Cottage
Dimensions (Furthest Exterior Walls): 67’-0” Depth X 60’-0” Width
Square Footage (Total Livable): 3,965.00 S.F. (369.00 S.M.)

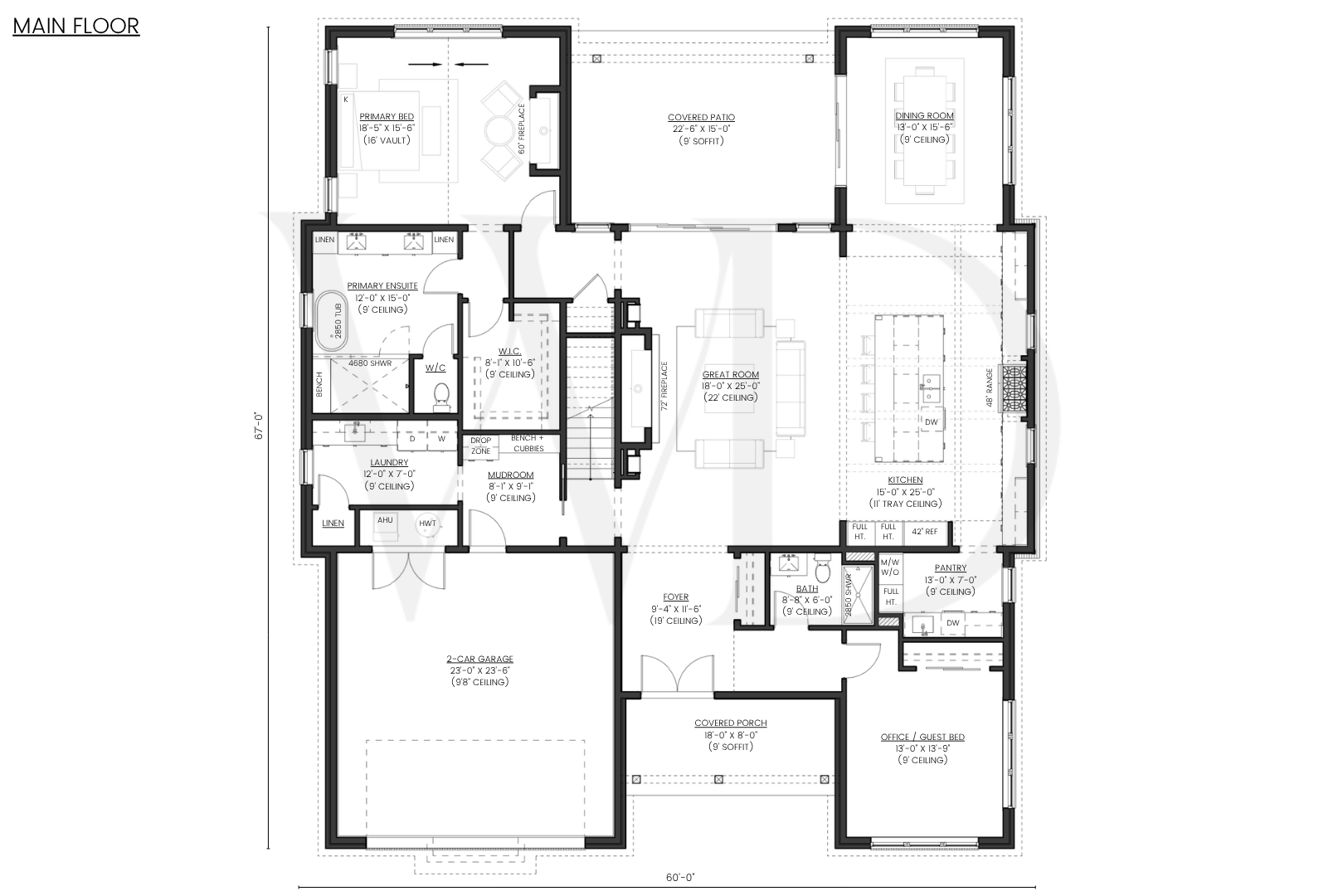

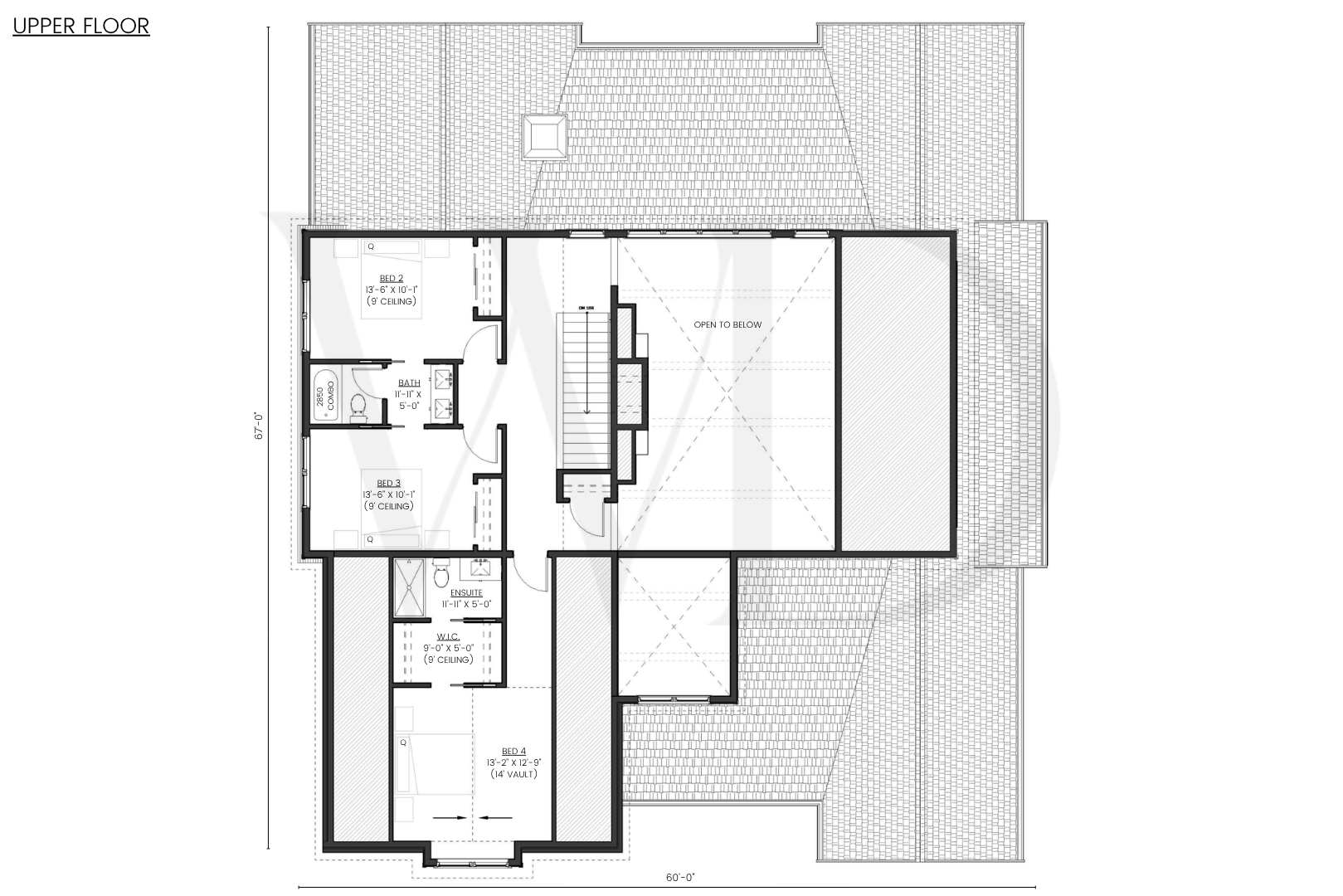

Square Footage Breakdown: Main Floor = 2,675.00 S.F. (249.00 S.M.), Garage = 579.00 S.F. (54.00 S.M.), Mechanical = 29.00 S.F. (3.00 S.M.), Upper Floor = 1,290.00 S.F. (120.00 S.M.)
Square Footage (Non-livable - Garage + Mech): 608.00 S.F. (57.00 S.M.)
Lot Coverage (Main Floor + Mech + Garage + Covered Patios): 3,787.00 S.F. (353.00 S.M.)
Height: 32’ - 5” (9.88 M)
Bedrooms: 4-5
Bathrooms: 4
Garage: 2-Car
Foundation: Slab Included
* Please ensure you have read the complete FAQ section on our previous “The Shop” page, and that all due diligence has been done prior to purchasing these stock plans.
